Pentho Compact Kitchen

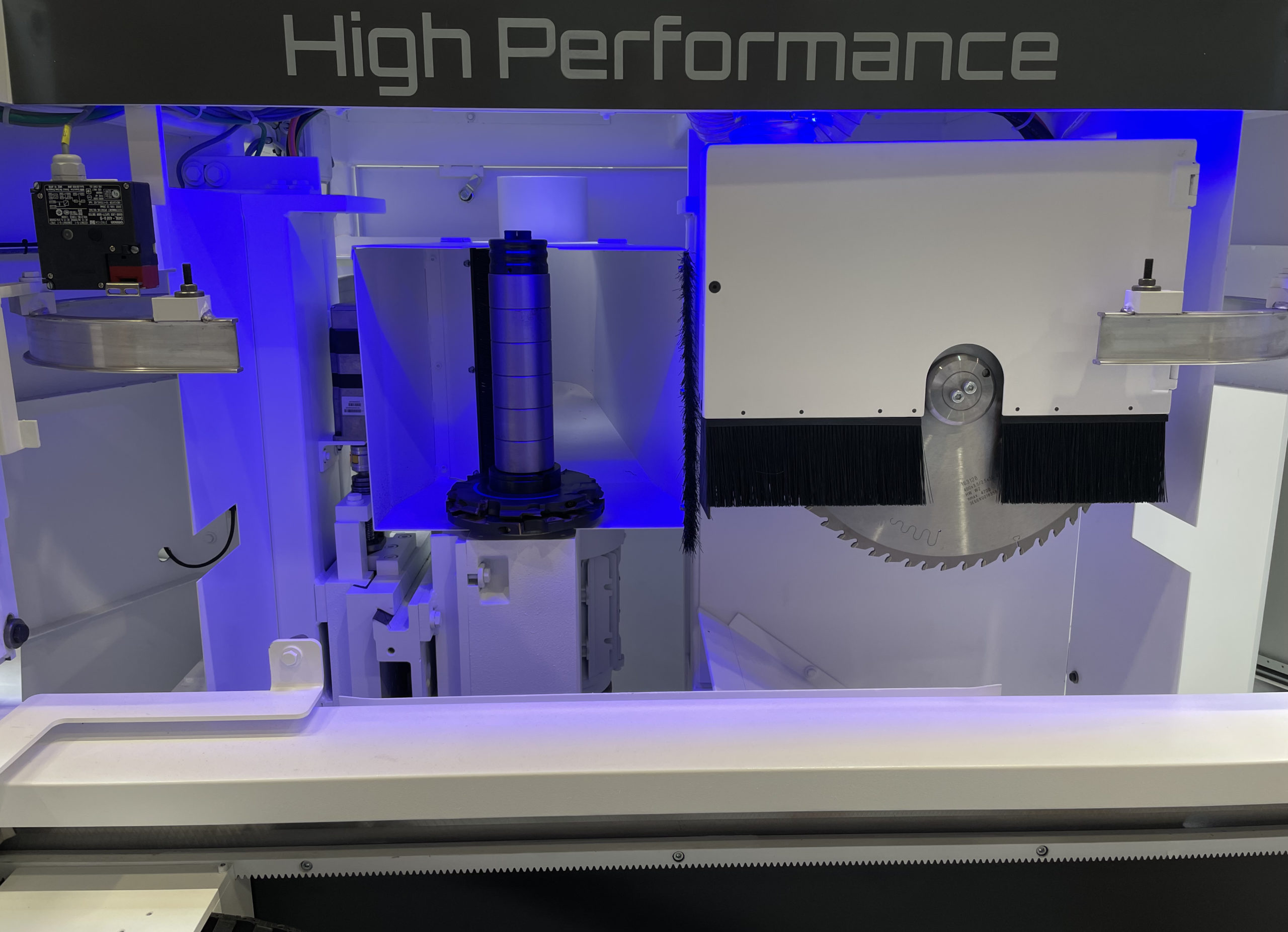

The Pentho Compact Kitchen is a fully CNC-controlled single-end tenoner with a noise-reduced cut-off saw and 1 vertical spindle of 300mm with Prolock.
- Saw with a cut-off capacity of 1.25″
- 1 x Vertical spindle 300 mm with Prolock
- 7” touch panel for starting motors and job recipes in own language
- All axes set themselves simultaneously and automatically in the correct position
- Graphic application available for easy entry of new ax settings
- Automatic length-fence with oversize functionality
- Programming by teach-in
The Pentho Compact Kitchen is a fully CNC-controlled single-end tenoner with a noise-reduced cut-off saw and 1 vertical spindle of 300mm with Prolock.
The spindle is designed to stack tools, allowing you to cope and size different profiles without manual setup. The automatic length fence makes it easy to cut your workpieces to the right length. And as the automatic table fully adapts to the chosen program, the speed of sawing, coping, and traveling is perfectly synchronized. This way, you can work on multiple pieces at once.
Finally, there is the integrated clamp detection that guarantees secure fastening of all workpieces. And the transparent safety screen making the machine extremely safe and user-friendly.
Vertongen tip!
Combine the Pentho Compact Kitchen with the Profil Compact Kitchen for the complete production of kitchen cabinet door frames.
Technical product specifications
Cut-off Saw
- Motor:
- 2.2 kW (3HP)– 3000 RPM
- Adjustment:
- Horizontal 10-150 mm
- Tool:
- Noise reduced saw included – Ø 400 mm
- Dust extraction:
- 80 mm diameter
- Positioning:
- cnc positioned
Vertical Spindle
- Motor:
- 7.5 kW (10HP) – 7200 RPM@60Hz
- Suspension:
- Dove tail
- Positioning:
- Vertical cnc-positioned; horizontal pneum. On/Off
- Turning direction:
- Counter clockwise
- Movement:
- Vertical: -20mm - +270mm
- Spindle:
- 300 mm with Prolock, Ø 50 mm
- Tool Ø:
- Min. Ø 160 mm; max. Ø 240 mm
- Dust extraction:
- Ø 150 mm
Table
- Construction:
- Automatic table movement with vertical pneumatic clamp
- Backing wood:
- Clamp for straight backing wood
- Length-fence:
- Automatic with one large swiveling back stop
Min. part length 4”max. 100” (limit digital fence) - Clamping height:
- Min. 0.6”max. 1.25” with max. oversize: 0.004” / 0.1 mm
- Clamping width:
- Min.1.5”max. 9”
- Table dimensions:
- 200 mm x 600 mm (useful)
Chassis
- Safety specification:
- CE
- Dimensions:
- 1985mm x 2535mm x 1520mm (L x W x H) / Weight: 1200 kg (2650 lbs)
- Total extraction:
- 1 x Ø 80 mm; 1 x Ø 150 mm
Controller
- Touch panel:
- 7”Touch screen at eye level
- Motors:
- All motors are started via control panel
- Touch panel:
- Memory for saving programs for easy call-up and repeatability
- Programming:
- Programming via Teach-in command for creation of new profiles
Power / Electrics / Compressed air
- Electrics:
- 400V 3 phase + Neutral + Ground / Amperage: 25A (@ 400V)
- Transformer:
- Transformer included with machine for customers voltage (230V, 460V or 480V)
- Certification:
- Electrical cabinet CSA/UL-Certified
- Compressed air:
- 1000NL/min; 6 bar
