Profil Control
The Profil Control is a profile moulder with one or more spindles.
- One or more vertical spindle(s) 300mm or 545mm
- Profiling height up to 140mm
- Additional units (glass bead saw, hardware grooves, slot cutters) available
- 7-inch touch panel in own language
- Composition depending on customer needs
- Total project followed by Vertongen
- CNC available on every movement
- Combinable with tenoner
- Online communication available
The Profil Control is produced with one or more spindles.
With the tool splitting technology tools from all the spindles can be combined with each other. The machine can be equipped with a glass bead saw, a hardware groove, and top or/and bottom slot cutters.
Vertongen tip!
The Profil Control can be entirely automated and be combined with the Pentho Control to come to a complete window line.
Technical product specifications
General
- 7-inch touch panel:
- For the operation of the machine, selecting of all motors by the panel
- Construction:
- Combined self supporting frame with a cage construction
- Security:
- Conform CE
Table
- Guiding:
- 80mm high, 1st fence is manually adjustable 4mm
- Through feed:
- Air jets in table for better through feed of timber
- Cleaning:
- Compressed air system between table and fence
- Width:
- 160mm
- Extension table:
- For storm proofing

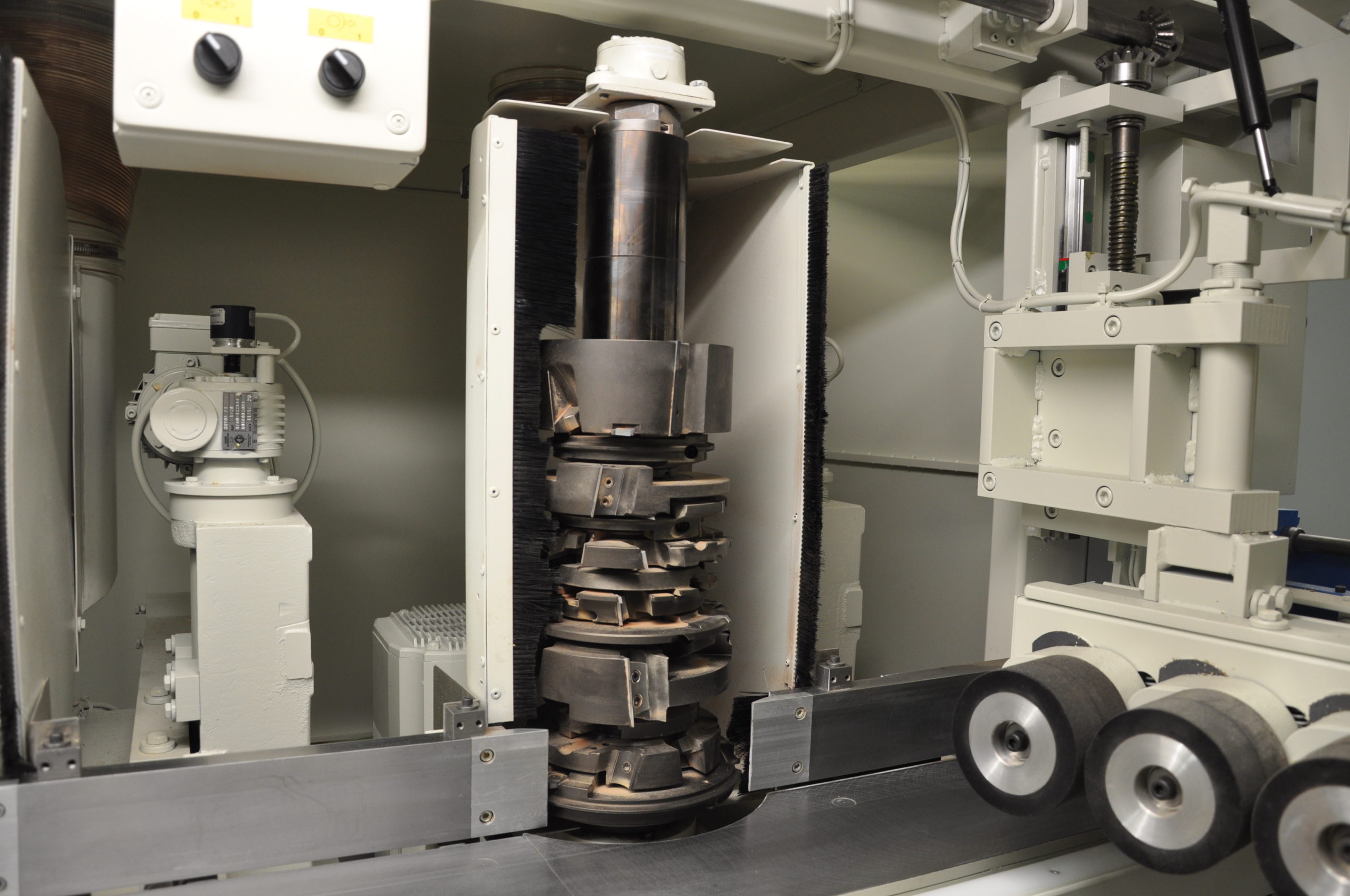

Vertical spindle
- Motor:
- 11 kW
- RPM:
- 6000 tpm
- Suspension:
- Dovetailed
- Positioning:
- Vertical CNC-positioned with ball circulating screw
Horizontal fix; on/off or CNC-positioned option - Measurements spindle:
- Length: 300mm with Prolock, or 545mm with top bearing
Diameter: Ø 50mm - :
- Minimum zero Ø 120mm
Maximum Ø = zero Ø + 90mm, max. 240mm - Tool Ø:
- Ø 180 mm
Feeding device
- Speed:
- Adjustable between 2 - 12 m/min
- Vertical:
- 20mm to 140mm
- Rollers:
- Wear-resistant rollers, Ø 100 mm, every 103 mm. Number determined by composition machine, minimum 13
- Positioning:
- Manual, with CNC-positioned option
Extra options
- Extra options:
- Glass bead saw
Hardware groove
Slot cutters
Automatic timber return system
15-inch touch panel with separate control console
