The Pentho Compact 3 is a slot and tenon machine for making professional woodworking joints.
- Saw with cut-off capacity 150 mm
- Tenon heads
- 1 x Vertical spindle 200 mm with Prolock
- Performance en high-performance pack available
- All movements are manually adjustable
- 7-inch touch panel for starting motors and job recipes in own language
- Total table swiveling +60° to -60°
- Round backing wood available
- Digital length-fence 2,4 with 1 large swiveling backstop
- High-quality saw and tenon heads installed

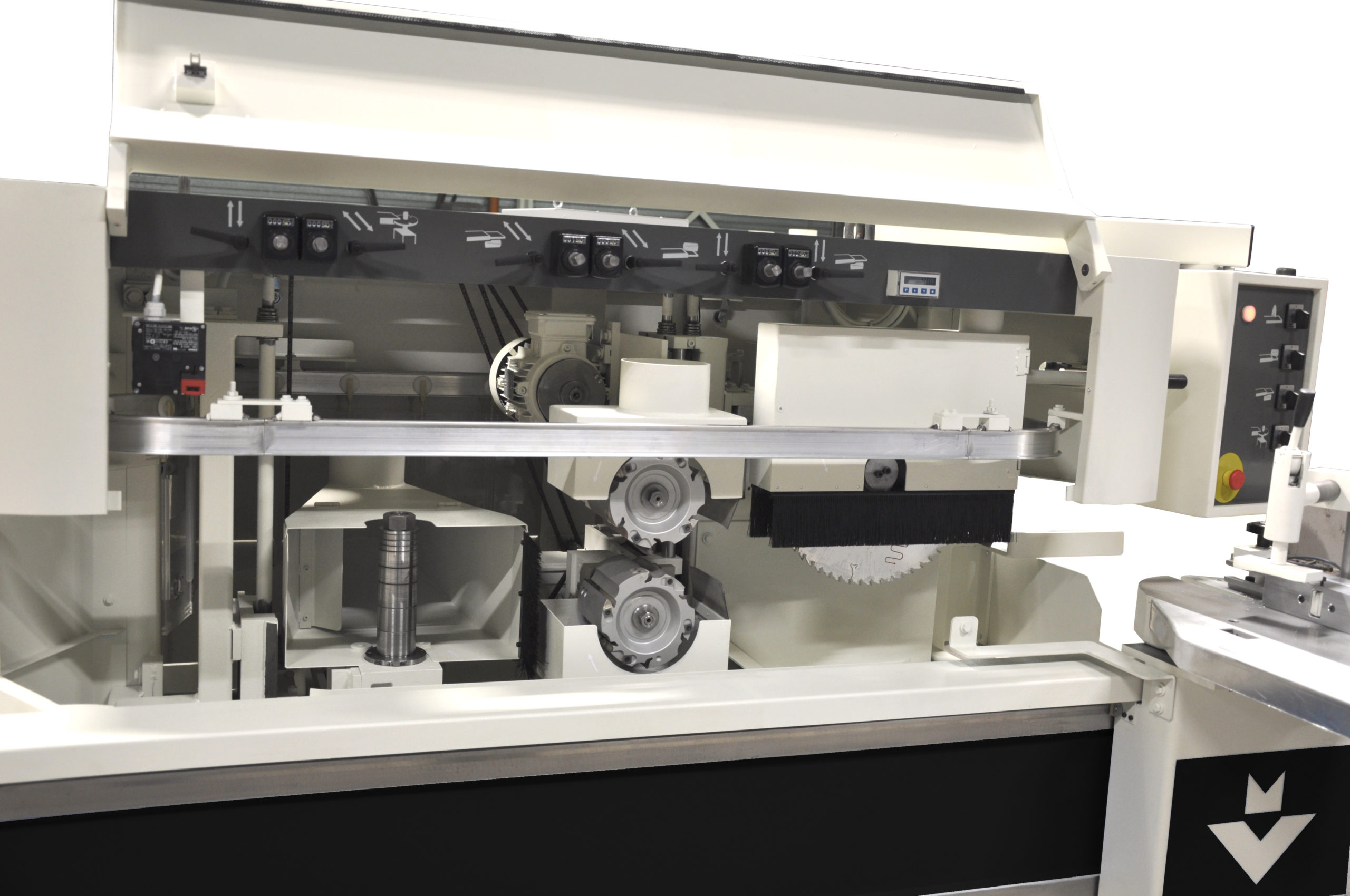

The Pentho Compact 3 has a noise-reduced cut-off saw with a cut-off capacity of 150mm, two tenon heads, and a vertical spindle adjustable to an accuracy of 0.1 mm.
The slot & tenon machine is equipped with a robust table on a stable and wear-resistant vertical slide bar. The table can be swiveled 60° in two directions for angled work.
As a safety system, the Pentho Compact 3 is equipped with a transparent dust protection screen that moves with the table and completely seals the machine.
Upgrade your Pentho Compact 3 with our High-Performance pack.
Convert your set-up time into valuable production time
With a spindle of 300mm and 7 individual CNC-positionings, this High-Performance CNC-tenoner switches between different programs in only 15 seconds. All axes, including the saw, set themselves simultaneously and automatically in the correct position. The position of the length-fence gets automatically recalculated in function of the saw. And it’s easy, straightforward graphical application allows the operator to make any type of single tenon right from the first time.
Technical product specifications
General
- 7" touch panel:
- Operate the machine and select motors
- Safety standards:
- Conform CE
- Dimensions:
- 2200 x 1700 x 1600mm
- Total Extraction:
- 1 x Ø 80 mm; 3 x Ø 150 mm
Table
- Table mounting:
- Vertical attached, extra solid
- Movement:
- Manual with automatic movement option
- Table:
- Fixed in height, Swivelling +60° to -60°
- Backing wood:
- Clamp for straight backing wood, with round backing wood option
- Clamps:
- Manual vertical clamping with vertical pneumatic clamps option
- Dimensions:
- 160mm x 600mm
Cut-off saw
- Motor:
- 2,2 kW - 3000 tpm
- Adjustment:
- Horizontal 20-155mm, with 150mm cut-off capacity
- Noise reduced saw:
- Ø 400mm, included
- Extraction:
- Ø 80mm
- Positioning:
- Manual on side bearings
- Measuring rod:
- Digital read-out or laser option
Tenoning heads
- Motor:
- 2 x 2,2 kW
- RPM:
- 4500
- Suspension:
- Side bearings
- Reading:
- Mechanical digital counter on front and rear side of the machine
- Tenon heads:
- included, Ø 160mm, length 145mm with exchangeable blades
- Extraction:
- 2 x Ø 150mm
- Movement:
- Horizontal upper -55mm to +25mm
Horizontal lower -55mm to 0mm
Vertical upper +3mm to +150mm
Vertical lower -2mm to +80mm
Vertical spindle
- Motor:
- 7,5 kW
- RPM:
- 4000
- Suspension:
- Dovetailed
- Reading:
- Mechanical digital counter on front and rear side of the machine
- Movement:
- Horizontally 150mm, vertically -150mm to +25mm
- Measurements spindle:
- Length: 200mm with Prolock, 300mm x 50mm with HP Prolock
Diameter: Ø 40mm or Ø 50mm - Tool Ø:
- Maximum Ø 350mm
- Extraction:
- 150 mm Ø
Extra options
- Extra options:
- Round backing wood with 6 manual adjustable positions
Vertical pneumatic clamp
Automatic length-fence
High performance
